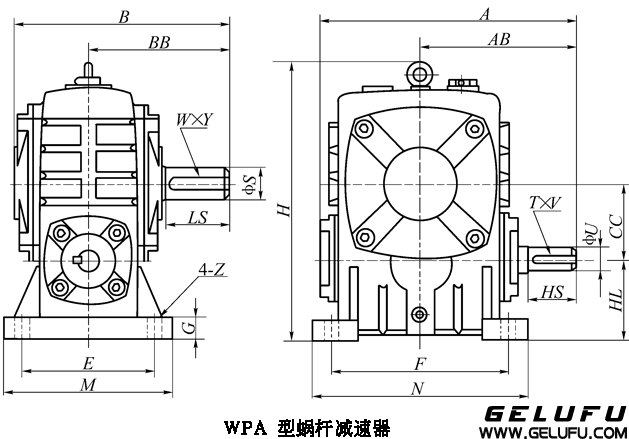

WPA型蜗轮蜗杆减速机主要安装尺寸
Www.Gelufu.Com 格鲁夫机械 2015-05-25 22:20:43
点击：
|
A
|
AB
|
B
|
BB
|
CC
|
H
|
H1
|
LL
|
HL
|
M
|
N
|
E
|
F
|
G
|
Z
|
输入轴
|
输出轴
|
质量m/kg
|
||||||
|
HS
|
U
|
T×V
|
LS
|
S
|
W×Y
|
||||||||||||||||||
|
40
|
1/10
1/15
1/20
1/25
1/30
1/40
1/50
1/60
|
143
|
87
|
114
|
74
|
40
|
138
|
141
|
60
|
40
|
90
|
100
|
70
|
80
|
13
|
10
|
25
|
12
|
4×2.5
|
28
|
14
|
5×3
|
4
|
|
50
|
175
|
107
|
150
|
97
|
50
|
176
|
180
|
80
|
50
|
120
|
140
|
95
|
110
|
15
|
12
|
30
|
12
|
4×2.5
|
40
|
17
|
5×3
|
7
|
|
|
60
|
198
|
122
|
168
|
112
|
60
|
204
|
207
|
90
|
60
|
130
|
150
|
105
|
120
|
20
|
12
|
40
|
15
|
5×3
|
50
|
22
|
6×3.5
|
10
|
|
|
70
|
231
|
140
|
194
|
131
|
70
|
236
|
238
|
105
|
70
|
150
|
190
|
115
|
150
|
20
|
15
|
40
|
18
|
6×3.5
|
60
|
28
|
8×4
|
15
|
|
|
80
|
261
|
160
|
214
|
142
|
80
|
268
|
273
|
120
|
80
|
170
|
220
|
135
|
180
|
20
|
15
|
50
|
22
|
6×3.5
|
65
|
32
|
10×5
|
20
|
|
|
100
|
322
|
190
|
254
|
169
|
100
|
336
|
334
|
150
|
100
|
190
|
270
|
155
|
220
|
25
|
15
|
50
|
25
|
8×4
|
75
|
38
|
10×5
|
35
|
|
|
120
|
381
|
229
|
282
|
190
|
120
|
430
|
423
|
180
|
120
|
230
|
320
|
180
|
260
|
30
|
18
|
65
|
30
|
8×4
|
85
|
45
|
14×5.5
|
60
|
|
|
135
|
433
|
260
|
317
|
210
|
135
|
480
|
482
|
215
|
135
|
250
|
350
|
200
|
290
|
30
|
18
|
75
|
35
|
10×5
|
95
|
55
|
16×6
|
80
|
|
|
155
|
504
|
302
|
382
|
252
|
155
|
531
|
541
|
235
|
135
|
275
|
390
|
220
|
320
|
35
|
21
|
85
|
40
|
12×5
|
110
|
60
|
18×7
|
110
|
|
|
175
|
545
|
325
|
402
|
262
|
175
|
600
|
600
|
260
|
160
|
310
|
430
|
250
|
350
|
40
|
21
|
85
|
45
|
14×5.5
|
110
|
65
|
18×7
|
150
|
|
|
200
|
587
|
350
|
467
|
305
|
200
|
666
|
677
|
290
|
175
|
360
|
480
|
290
|
390
|
40
|
24
|
95
|
50
|
14×5.5
|
125
|
70
|
20×7.5
|
215
|
|
|
250
|
705
|
420
|
552
|
360
|
250
|
800
|
824
|
350
|
200
|
460
|
560
|
380
|
480
|
45
|
28
|
110
|
60
|
18×7
|
155
|
90
|
25×9
|
360
|
|
